PF Dim Tools
The most popular plugin package among civil and structural engineers. It offers sophisticated tools for working with openings, automated dimensioning of walls, windows, doors, and grid lines, as well as an intelligent tool for dimension text placement—along with many other features designed to streamline your daily workflow.
Includes:
- Automatic dimensioning of walls and grids
- Smart automated placement of dimension values (moves text outside the wall/geometry)
- Join dimension strings
- Automatic dimensioning of doors, windows, and generic elements (e.g., openings)
- Removal of "0" values from dimension strings
- Openings (Generic Models): Automated writing of Sill Height (SH) and Head Height (HH) in both relative and absolute elevations
Create an account to download your free trial.
It automatically generates the bottom and top height of penetrations, both relative and absolute values. It simplifies dimensioning of windows, including sills. It handles doors as well as general models. The text on the dimension line is intelligently placed without overlap. It eliminates the "0" dimension of dimensions.

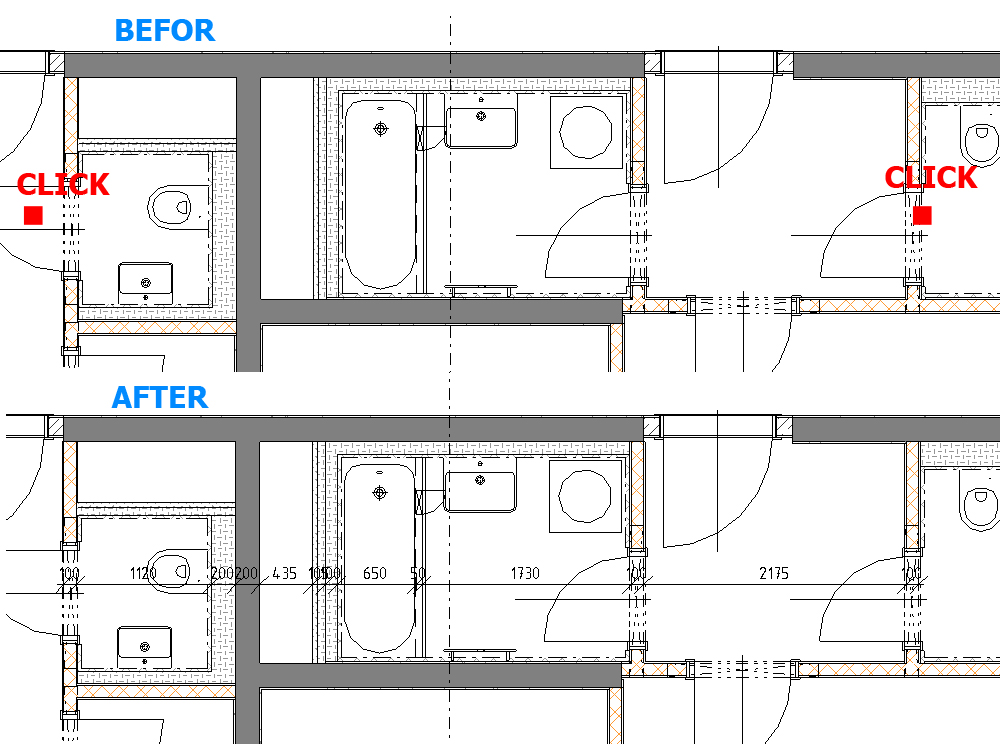

DIMENSIONING WALLS AND GRIDS
You just need to click to indicate where the dimension should be drawn, and within this range, the dimension will be generated, covering all the walls. You can choose whether to dimension the entire thickness of the wall or just the load-bearing part. You can also filter by workset, wall thickness, etc..

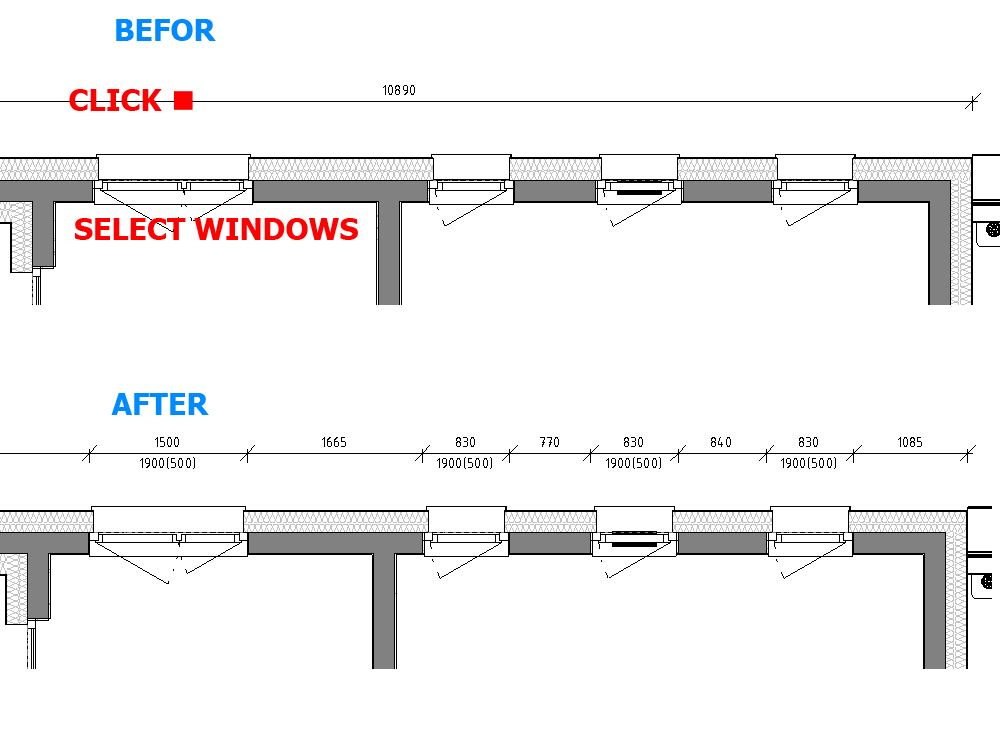

DIMENSIONING WINDOWS, DOORS, GENERIC MODELS
By selecting elements, window dimensions are automatically created along with text at the bottom of the dimension. This follows Czech conventions, showing the window height and the sill height in parentheses. For doors, you can select, for example, the height or the rough height. You can customize everything individually according to your families or local customs. By moving a window/door/general model, the already created dimensions automatically adjust when changes occur, such as a change in the sill height, etc.

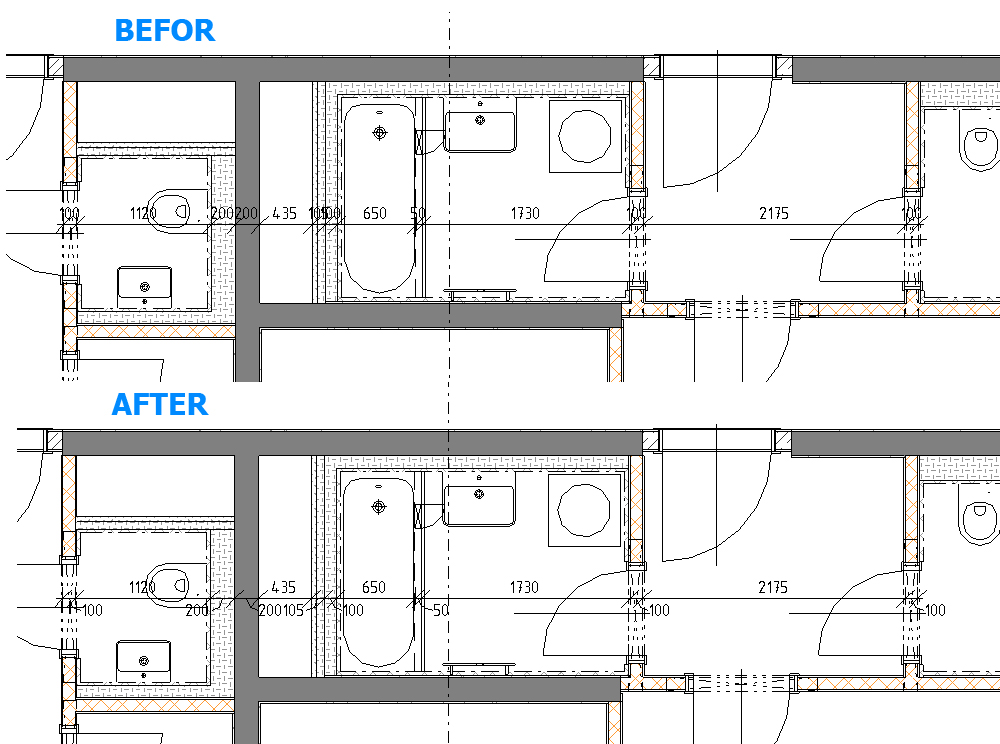

MOVE DIMENSION VALUE
The intelligent algorithm places the dimension value in such a way that it does not overlap with other values.
RESET MOVED DIMENSION VALUE
This function moves the value back to its original position. It is the inverse function of the "MOVE DIMENSION VALUE" function.
JOIN DIMENSION
This function allows you to combine two dimensions into one.
REMOVE NON ZERO DIMENSION VALUES
This function removes zero values from the dimension chain.

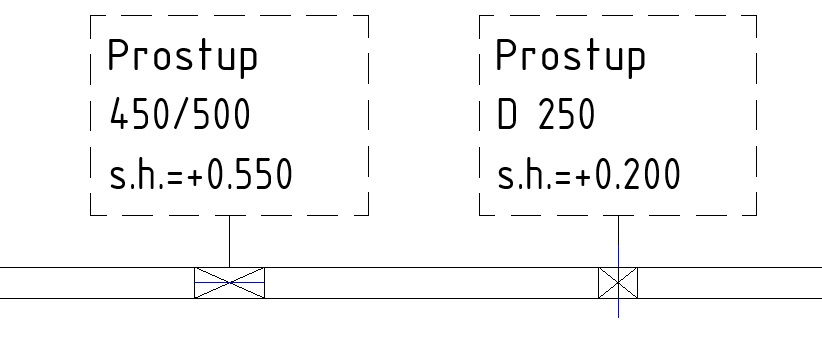

STATIC FUNCTIONS - VOIDS
It automatically assigns the bottom and top height values to the void element, both relative and absolute. It also ensures that the void is visible in the floor plan, either below or above the cutting plane.
Includes:
- Automatic dimensioning of walls and grids
- Smart automated placement of dimension values (moves text outside the wall/geometry)
- Join dimension strings
- Automatic dimensioning of doors, windows, and generic elements (e.g., openings)
- Removal of "0" values from dimension strings
- Reset text position for selected dimension
- Openings (Generic Models): Automated writing of Sill Height (SH) and Head Height (HH) in both relative and absolute elevations
Version 4.3
- New: Online activation and license transfer to another PCNew: License status verification
- New: Online updates
- Support for Czech, English, and custom localizations.
- New: Smarter dimension value placement
- New: The feature for adding a custom value below the dimension line now accepts the default Left/Right references
- New: The custom value below dimension line feature now also supports multiple custom variants
- New: Ability to switch between projects while the dimension creation dialog is open (dialog updates dynamically)
- Fixed: Minor bug fixes
- Updated: Code refactored for .NET 8 - 10 (Revit 2027 and higher)
Version 4.0
- Updated: Code refactored for .NET 8
Version 3.5
- Fixed: Grid dimensioning (pozn.: pokud "osy" myslíte jako středové osy prvků, lze použít "Centerline dimensioning")
- Fixed: Minor bug fixes
- Updated: Target framework set to .NET 4.8.1 (for Revit 2025)
- Version 3.5 (ponecháno původní číslování z vašeho textu)
- New: Text position optimization
- New: Reset dimension position
- Updated: Target framework set to .NET 4.5
Version 3.0
- New: Exclude dimensions with a zero value
- New: Add custom value below dimension
- Fixed: Minor feature improvements and fixes
Version 2.0
- New: Merge dimensions (nebo "Join dimensions")
- New: Openings – populating Sill Height (SH) and Head Height (HH) parameters (pozn.: SH = Sill Height/parapet, HH = Head Height/nadpraží)
Version 1.0
- New: Automatic wall dimensioning, including an option to dimension only the structural core
